Superior Fire Resistance
The addition of a 5mm glass magnesium oxide board to the ceiling panels significantly enhances fire protection, providing an extra layer of defense against fire.
1 -
Robust Construction
The use of metal connectors reinforces the strength and durability of both wall and ceiling panels, ensuring long-lasting performance.
2 -
Thicker Insulation
The 5mm thicker rock wool provides superior insulation, improving energy efficiency and contributing to fire resistance.
3
English
50mm Metal Cleanroom Panel Handmade, Rock Wool, Customizable
|
Coating |
PE, PVDF, Antistatic, Stainless Steel, HDP And PVC Coating etc. |
|
Panel Frame |
0.8mm, Galvanized Steel |
|
Corner Connection |
1.0mm, Galvanized Steel |
|
Fire Resistance |
1.0h |
|
Connection Type |
Aluminum Joint Type, Continuous Type |
|
Lead Time |
15 Days After Design Confirmed |
|
Shipment Method |
By Sea |
|
Payment Term |
TT/LC; CAD, Cash |
Product Description

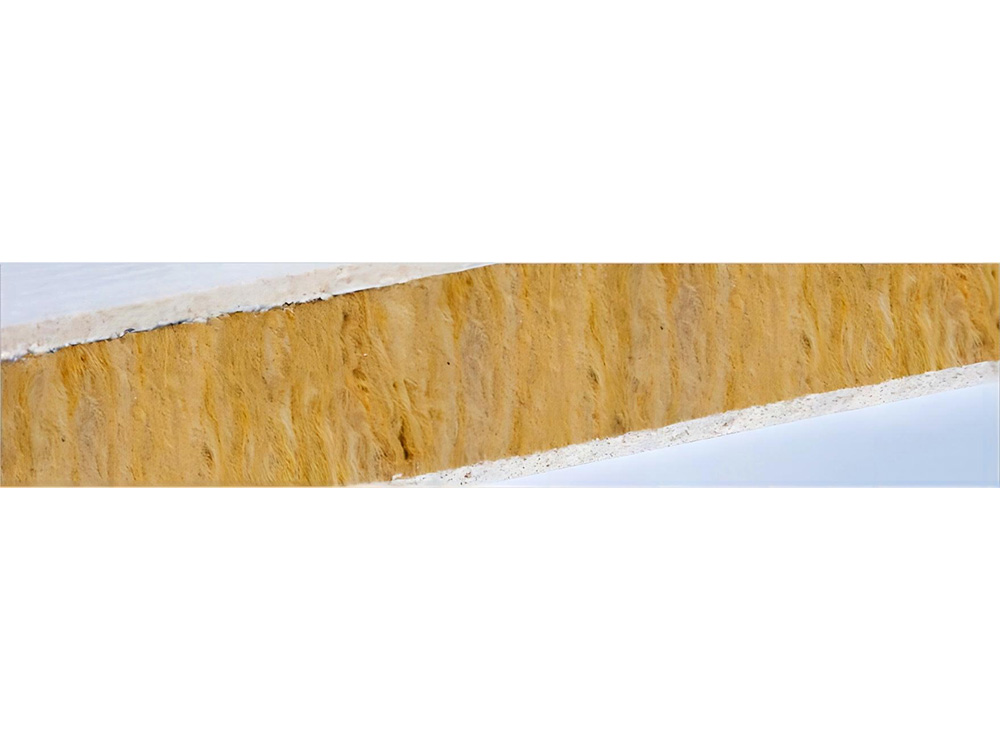

50mm metal surface handmade rock wool sandwich panel with MGO adopts color-coated or stainless steel sheet as the surface and the surrounding galvanized steel strips and galvanized corners are sealed, and the rock wool (can be water-proof) is filled with single or double layers of 5mm glass magnesium board as the inner core layer. Manufactured through processes such as heating, pressing, and curing.
Product Description
50mm metal surface handmade rock wool sandwich panel with MGO adopts color-coated or stainless steel sheet as the surface and the surrounding galvanized steel strips and galvanized corners are sealed, and the rock wool (can be water-proof) is filled with single or double layers of 5mm glass magnesium board as the inner core layer. Manufactured through processes such as heating, pressing, and curing.
WHY US
Enhanced Fire Safety and Durability
Precision Engineering and Quality
-

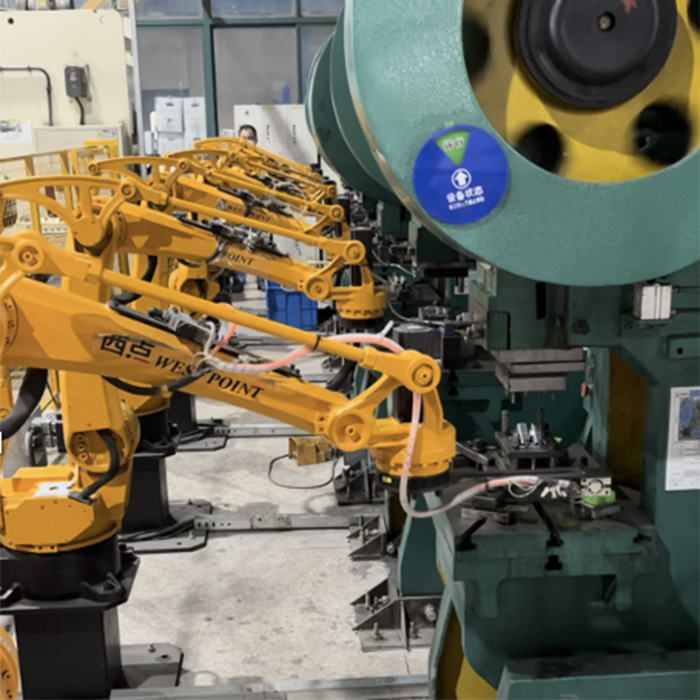

Automated Precision
The automated production process ensures precise and consistent panel dimensions and connections, minimizing errors and defects.
1 -
Superior Craftsmanship
The use of automatic machinery for corner production guarantees clean, precise, and aesthetically pleasing finishes.
2
.jpg)
.jpg)

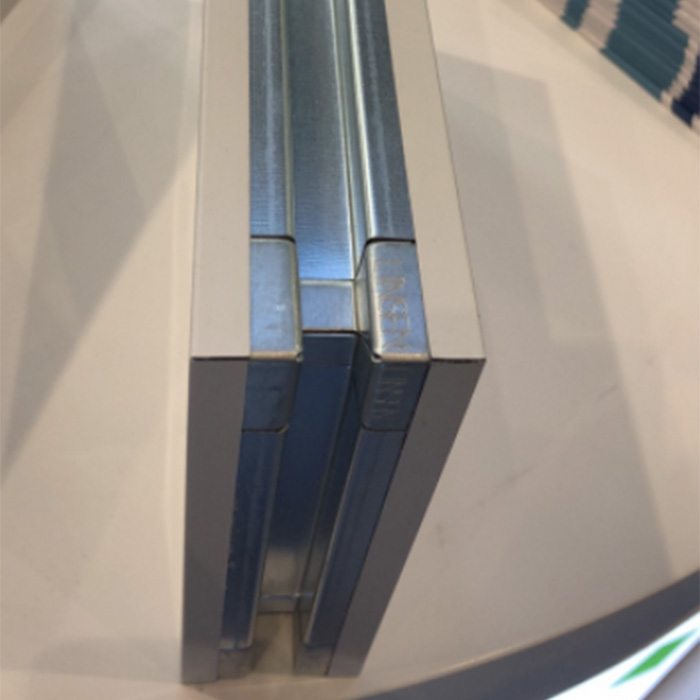

Metal connectors are highly fire-resistant, minimizing the risk of fire spread and structural damage
-
Sleek Design
Seamless corner connections for a modern look.
1 -
Easy Cleaning
Smooth surfaces for effortless maintenance.
2 -
Hygienic
Prevents dirt and bacteria buildup.
3
Physical Parameters
|
Physical Parameters |
|
|
Total Thickness |
50mm |
|
Standard Size |
980mm,1160mm,1180mm,1200mm Other Size Customizable |
|
Diagonal Tolerance |
≤1mm |
|
Max. Length |
≤10000mm |
|
Coating |
PE, PVDF, Antistatic, Stainless Steel, HDP And PVC Coating Etc. |
|
Sheet Thickness |
0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
|
Insulation Material |
Rockwool (Density: 100~120 Kg/M3), 1 Or 2 Layers Of MGO Are Available |
|
Panel Frame |
0.8mm, Galvanized Steel |
|
Corner Connection |
1.0mm, Galvanized Steel |
|
Protection Film |
0.06mm, Customizable If T>0.06mm |
|
Flexural Capacity |
0.9KN/M² |
|
Bonding Performance |
0.15mpa |
|
Peeling Performance |
≥ 85%—≤ 98% |
|
Heat-transfer Coefficient |
0.73W/M²·k |
|
Fire Resistance |
1.0h |
|
Connection Type |
Aluminum Joint Type, Continuous Type |
