Class A Laminar Air Flow



Lead Time

15 Days After Design Confirmed

Shipment Method

By Sea

Payment Term

TT/LC; CAD; Cash

Product Description
50mm metal surface handmade rock wool sandwich panel with MGO adopts color-coated or stainless steel sheet as the surface and the surrounding galvanized steel strips and galvanized corners are sealed, and the rock wool (can be water-proof) is filled with single or double layers of 5mm glass magnesium board  as the inner core layer. Manufactured through processes such as heating, pressing, and curing.
Product Description

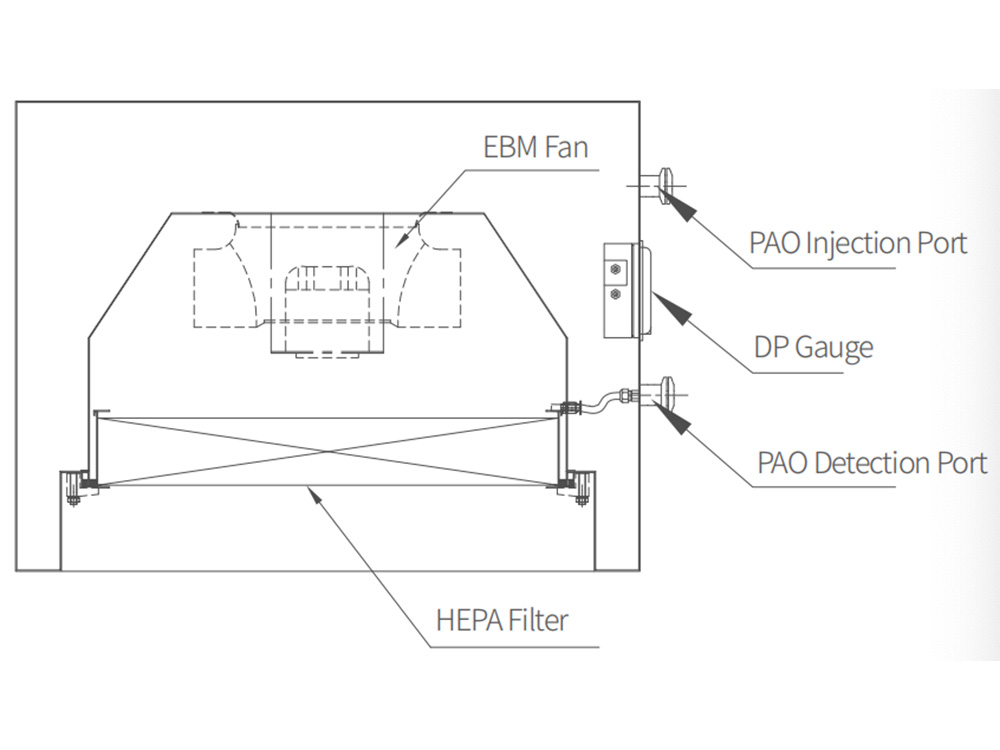

Class A laminar air flow is an air purification equipment that provides Class A unidirectional flow and creates a local high cleanliness environment. Its working principle is to pass the air through the HEPA filter at a certain wind speed, and the pressure is equalized by the unidirectional membrane so that the clean air is unidirectionally flowed to the working area.


Class A laminar air flow can be used singly or in combination. The working area of Class A laminar air flow is the core sterile area, the operators need to open the equipment from the class-B area environment according to the defined SOP to carry out process operation and intervention. These actions need to be formulated according to the risk of the product. The operator should avoid contacting with the core sterile area. If contact is needed, it should be done through isolation gloves or body suit.



WHY US

  • Double-Layer Negative Pressure Structure minimizes the risk of leakage and maintains a sterile environment.

    1
  • High-Quality Gel Sealant prevents the infiltration of airborne particles and microorganisms.

    2
  • Easy Cleaning and Maintenance saves you time and effort.

    3
  • Multiple Pressure Equalization ensures uniform air distribution throughout the workspace.

    4
  • Uniform Wind Speed guarantees effective particle removal and maintains a stable, contaminant-free environment.

    5
  • Good Unidirectional Flow Pattern prevents cross-contamination and ensures optimal air quality.

    6
  • Imported EBM Fan Technology delivers exceptional airflow, minimal pressure fluctuations, and reliable operation.

    7
  • Large Air Volume Margin accommodates a wide range of applications.

    8
  • Diverse Control Modes allow you to customize the system to your specific requirements.

    9
Physical Parameters

Model

External Size (L*W*H)

Internal Size (L*W*H)

Rated Speed
(m/s)

Cleanliness of

Working Area

Noise (dB)

Illumination
(Lux)

Power Supply
(KW)

UFH-120.60

1200*600*600

1200*600

0.45±20%

Class A

65

≥300

0.25

UFH-100.100

1000*1000*600

1000*1000

0.4

UFH-120.75

1200*750*600

1200*750

0.3
