Mobile Laminar Air Flow

Customizable	Per URS
Lead Time	15 Days After Design Confirmed
Shipment Method	By Sea
Payment Term	TT/LC; CAD; Cash

Mobile Laminar Air Flow

Product Description

50mm metal surface handmade rock wool sandwich panel with MGO adopts color-coated or stainless steel sheet as the surface and the surrounding galvanized steel strips and galvanized corners are sealed, and the rock wool (can be water-proof) is filled with single or double layers of 5mm glass magnesium board as the inner core layer. Manufactured through processes such as heating, pressing, and curing.

Product Description

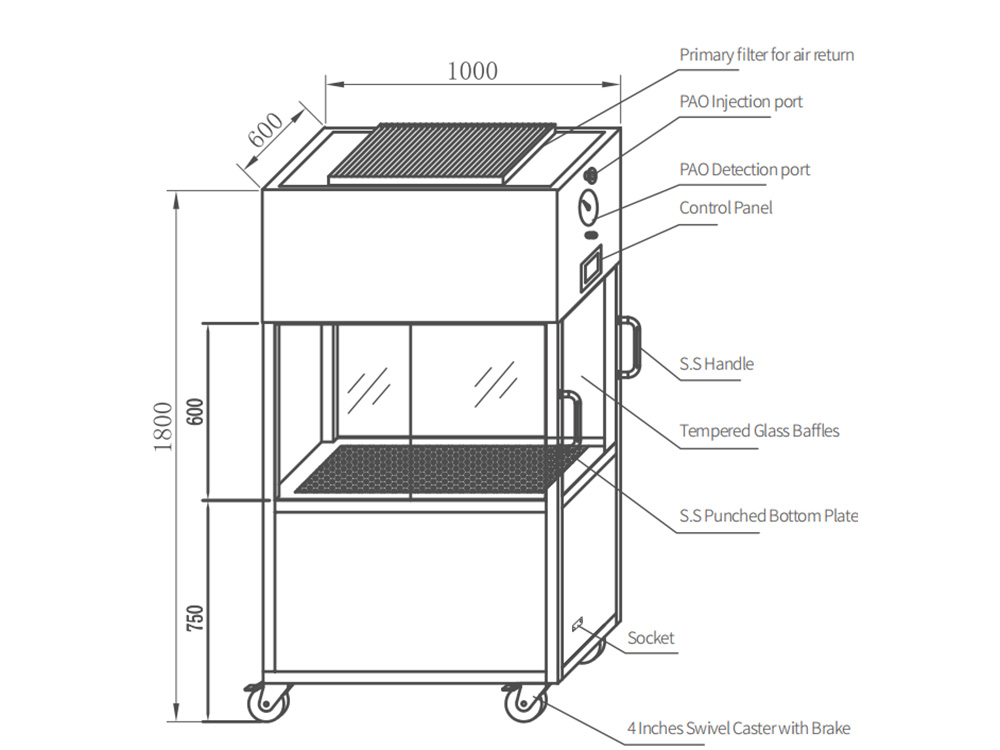

Class A Movable LAF is mainly used for aseptic transfer of materials and appliances between aseptic processes to realize aseptic docking. According to the different types of sterile materials, you can choose using vertical unidirectional flow or horizontal movable LAF.

Physical Parameters

Model

External Size(L*W*H)

Internal Size (W*D*H）

Rated Wind Speed(m/s)

Working Area

Cleanliness Level

Noise(dB)

Illumination(Lux)

Power(kw)

LL-MLAF-90.60

900*600*1800

820*580*750

0.45±20%

Class A

≥300

0.18

LL-MLAF-120.60

1200*600*1800

1120*580*750

0.25
