Sampling/ Weighing Booth

Lead Time	15 Days After Design Confirmed
Shipment Method	By Sea
Payment Term	TT/LC; CAD; Cash

Sampling/ Weighing Booth

Product Description

50mm metal surface handmade rock wool sandwich panel with MGO adopts color-coated or stainless steel sheet as the surface and the surrounding galvanized steel strips and galvanized corners are sealed, and the rock wool (can be water-proof) is filled with single or double layers of 5mm glass magnesium board as the inner core layer. Manufactured through processes such as heating, pressing, and curing.

Product Description

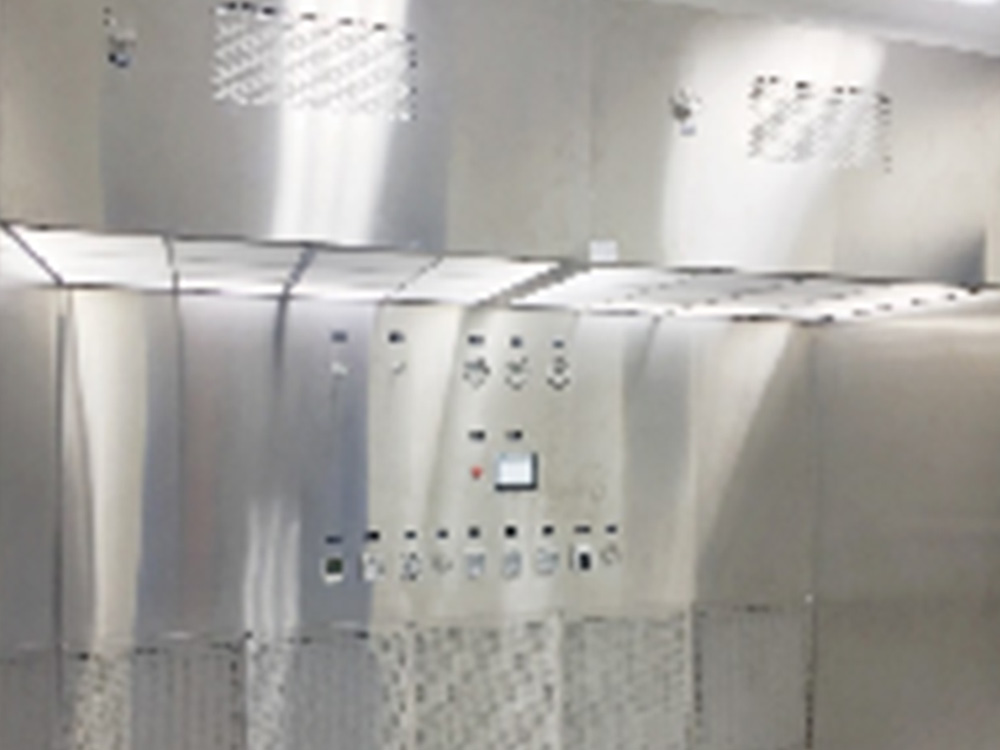

Sampling / Weighing Booth is a purification equipment designed for weighing raw materials and excipients , activated carbon and other solid matters with dust in the purification area. The working area of the weighing room is negative pressure relative to the background area . The air flow in the working area is vertical unidirectional , which ensures that the dust of the weighing material goes down with the air flow and does not diffuse to the background area . So it can prevent cross contamination and protect the cleanliness of environment and the safety of operators.

WHY US

Double Negative Pressure Design

Our advanced design creates a robust barrier against cross-contamination, safeguarding both the environment and personnel.

1
Arc-Shaped Working Area

The seamless, no-dead-angle design ensures efficient cleaning and prevents the accumulation of dust or debris.

2
Air Curtain Isolation

Our innovative air curtain system facilitates easy and safe entry and exit for personnel and materials, minimizing disruption to the sterile environment.

3

Physical Parameters

Model	External Size (LWH)	Internal Size (LWH)	Rated Speed (m/s)	Cleanliness of Working Area	Noise (dB)	Illumination (Lux)	Power Supply (KW)
WR 1600	160016002580	150010002000	0.45±20%	the same as background area	75	≥300	0.55
WR 4000	400025002580	390018002000	0.45±20%	the same as background area	75	≥300	3.3
